Dell PowerEdge R840 – 2× Xeon Gold 6138 | 384GB DDR4 | 2× 1.2TB SAS
Refurbished Enterprise Server | 6-Month Warranty

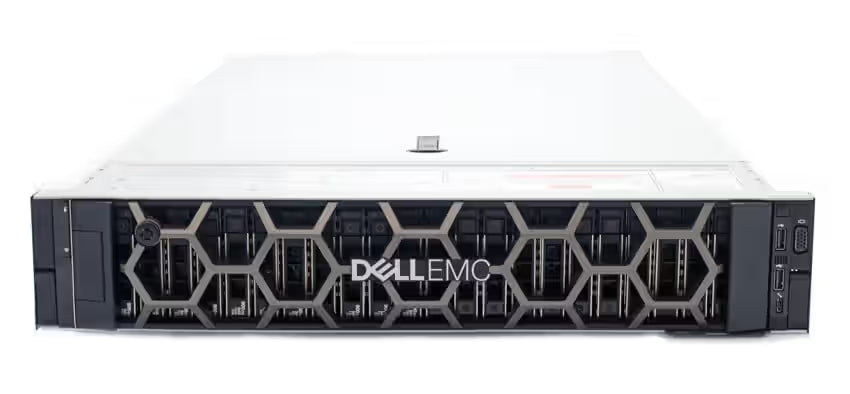

The Dell PowerEdge R840 is a high-performance 2U enterprise rack server designed for demanding virtualisation, database, enterprise application and compute workloads. This configuration features 2 × Intel Xeon Gold 6138 processors, providing 40 physical cores and 80 threads, paired with 384GB DDR4 ECC memory and 2 × 1.2TB SAS hard drives.

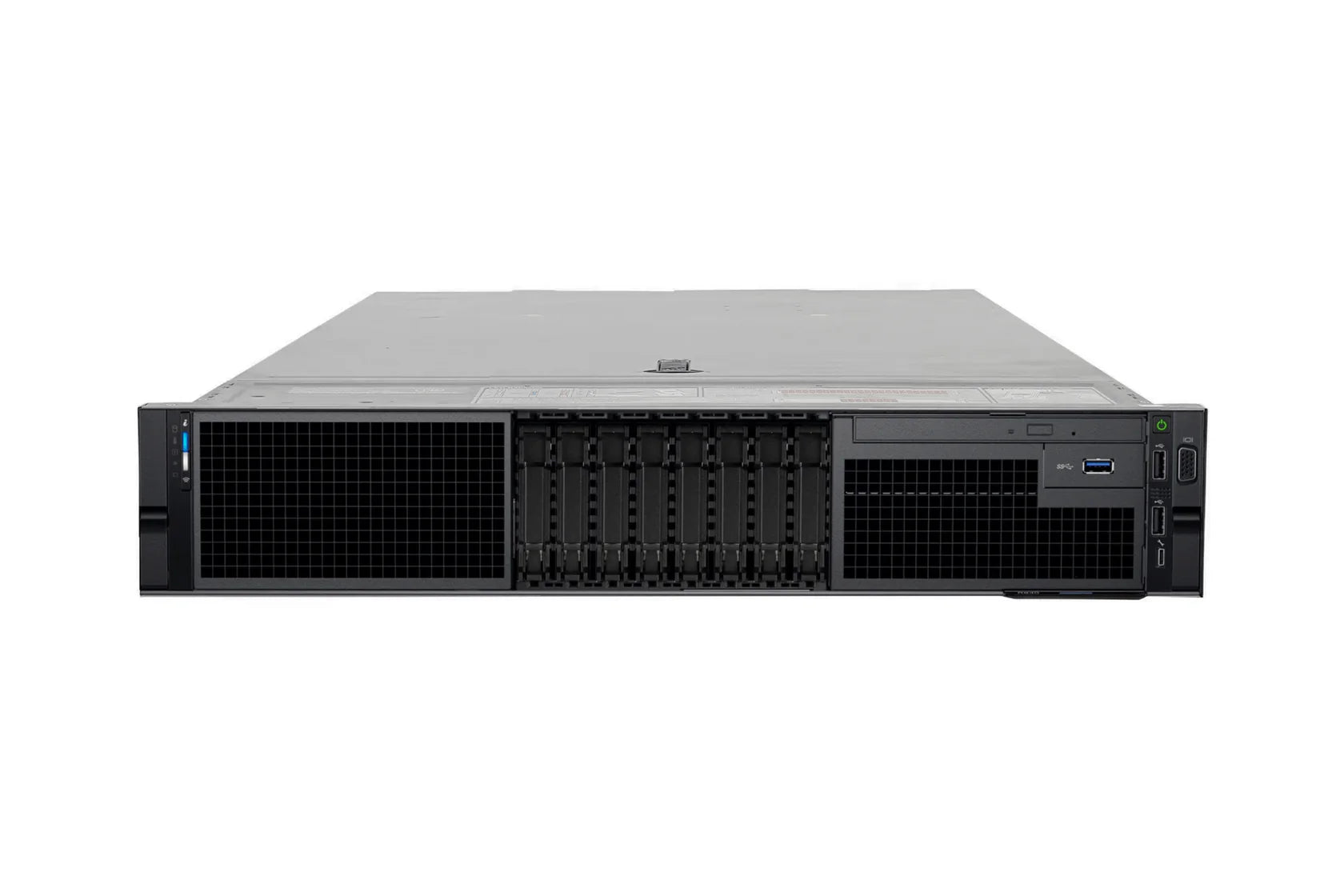

With 8 × 2.5-inch hot-swap drive bays and a Dell PERC H730P RAID controller, the server provides a solid foundation for enterprise storage and can be expanded as your requirements grow. Dell officially supports the R840 with up to eight 2.5-inch SAS/SATA drives in this chassis configuration and supports the PERC H730P controller.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Dell |
| Model | PowerEdge R840 |
| Form Factor | 2U Rack Server |
| Processors | 2 × Intel Xeon Gold 6138 |
| Cores per CPU | 20 Cores |
| Total CPU Cores | 40 Cores |
| Threads per CPU | 40 Threads |
| Total Threads | 80 Threads |
| Base Frequency | 2.00GHz |
| Max Turbo Frequency | Up to 3.70GHz |
| CPU Cache | 27.5MB L3 per CPU |
| Memory | 384GB DDR4 ECC |
| Drive Bays | 8 × 2.5" Hot-Swap |
| Storage | 2 × 1.2TB SAS HDD |
| Total Raw Storage | 2.4TB |
| RAID Controller | Dell PERC H730P |
| Management | Dell iDRAC Enterprise |
| Condition | Refurbished |
| Warranty | 6 Months |
Intel specifies the Xeon Gold 6138 at 20 cores/40 threads, 2.00GHz base frequency, up to 3.70GHz Turbo and DDR4-2666 support.
40-Core Enterprise Processing
The two Intel Xeon Gold 6138 processors provide:
- 40 physical CPU cores
- 80 threads
- 2.00GHz base frequency
- Up to 3.70GHz Turbo Boost
- 27.5MB L3 cache per CPU
- DDR4-2666 memory support
This makes the R840 suitable for workloads requiring substantial parallel processing and memory capacity, including virtualisation, databases, analytics and enterprise applications.
384GB DDR4 ECC Memory
The server includes 384GB of DDR4 ECC enterprise memory, providing plenty of capacity for running multiple virtual machines and memory-intensive applications.
The R840 provides 48 DDR4 DIMM slots and supports registered ECC DDR4 memory.
Enterprise SAS Storage
The included storage configuration consists of:
2 × 1.2TB SAS HDD = 2.4TB total raw storage
The 8 × 2.5-inch hot-swap drive bays allow drives to be replaced or expanded without requiring the server to be removed from service. Dell lists SAS/SATA support for the eight-drive R840 configuration.
Dell PERC H730P RAID Controller
The included Dell PERC H730P provides hardware RAID functionality for managing the server's SAS storage.
The H730P is an officially supported internal storage controller for the PowerEdge R840.
Enterprise Management
The server includes Dell iDRAC Enterprise, providing remote management and monitoring capabilities for easier administration of the server in a rack environment.
Ideal For
- VMware virtualisation
- Microsoft Hyper-V
- Proxmox
- Database servers
- Enterprise applications
- Private cloud infrastructure
- Business-critical workloads
- Data analytics
- Application hosting
- High-performance computing
- Enterprise storage environments
Condition
Refurbished Enterprise Server
- Fully tested and working
- Professionally refurbished
- May show normal cosmetic signs associated with previous rackmount use
Warranty
6-Month Warranty
Warranty excludes water damage and power surge damage.
